Insulated Messenger System
Insulated Messenger System
LV ABC
Insulated Neutral Messenger
Anchoring Clamp
Suspension Clamp
Service Clamp
DB Boxes
NFC-tested clamps
Product selection & technical support
Detailed installation tutorials
80+ utility approvals worldwide
In-house testing and manufacturing
selection criteria
Selection Criteria for Insulated Messenger System
from the axis technical teams
Technical Guides
and Resources
FAQS
Frequently Asked Questions
Find quick answers to common questions about our programs, admissions, eligibility, and application process to help you move forward with confidence.

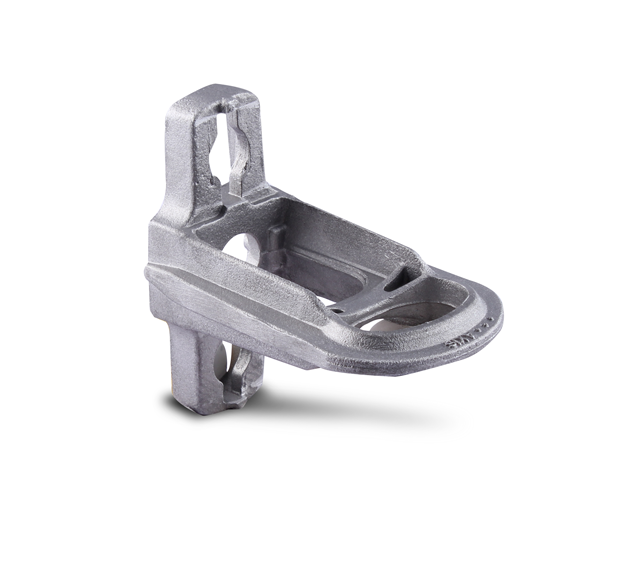

The range includes anchoring clamps, suspension clamps, service clamps, distribution boxes in PC, SMC, and Deep Drawn options, and supporting hardware.
Axis anchoring clamps cover 25-35 mm², 54.6-70 mm², and 54.6-70(95) mm² depending on the product code.

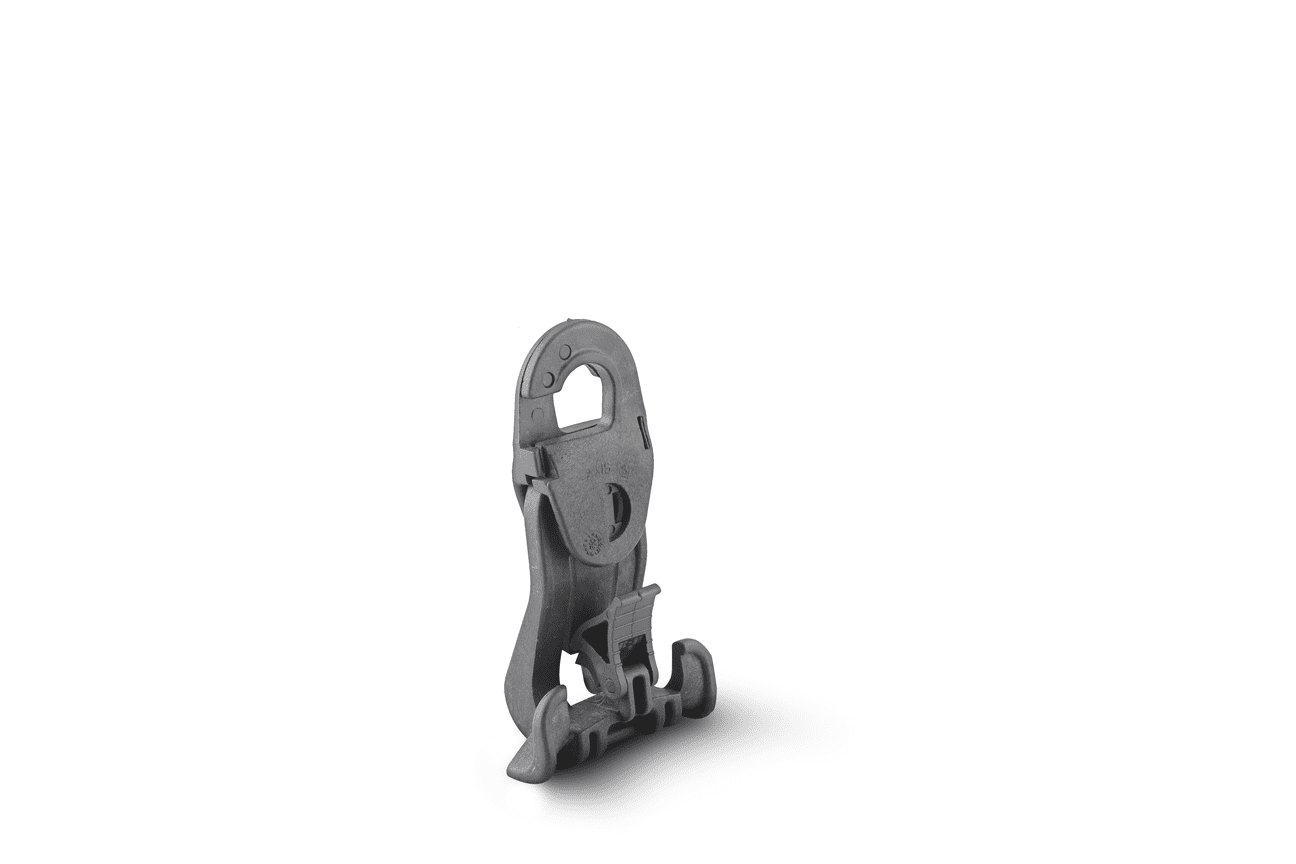

Axis suspension clamps cover 25-35 mm², 54.6-70 mm², up to 95 mm², and 25-95 mm² depending on the product code.

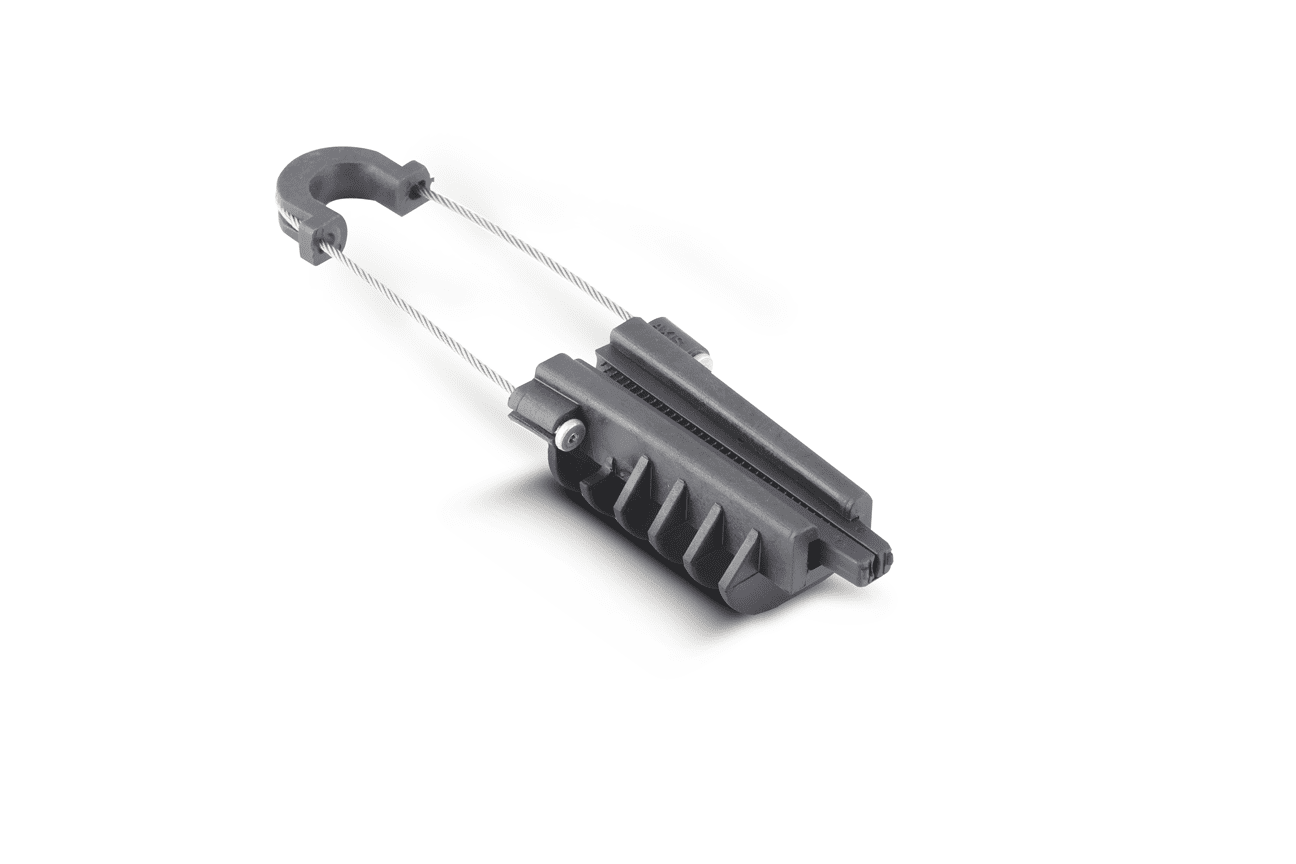

Axis service clamps cover 1C x 16-25 mm² and 2/4C x 16-25 mm² service cable options, depending on the product code.
Axis anchoring clamps mention NF C 33-041, suspension clamps mention NF C 33-040, and service clamps mention NF C 33-042.
Axis offers PC, SMC, and Deep Drawn distribution boxes for low-voltage distribution applications.
The catalogue mentions IP55 rating for PC, SMC, and Deep Drawn distribution boxes.
