Self-Supporting System (2/4 Core System)

LV ABC
DB Boxes
ABC Accessories
Self-Supporting System
2 Core ABC
4 Core ABC
Self-Supporting System (2/4 Core System)
Shield Check

BS EN 50483 tested clamps.

Question Circle

Product selection & technical support.

Lightning Bolt

Clamp installation tutorials.

Globe

80+ utility approvals worldwide.

Gemstone

In-house testing and manufacturing.

selection criteria

How to select accessories for Self-Supporting System?

1
Step 1

Cable system

Confirm whether the line uses a 2 core or 4 core self-supporting ABC system.

2
Step 2

Application

Select anchoring, suspension, service connection, distribution box, or supporting hardware requirement.

3
Step 3

Conductor size

Share the cable size, such as 25-50 mm², 50-95 mm², 95-120 mm², or 2/4C x 25-120 mm².

4
Step 4

Conductor diameter

Match the clamp to the cable diameter range given in the product table.

5
Step 5

Line angle

Confirm whether the line needs termination, straight suspension, deviation angle, or line continuation.

6
Step 6

Service connection

For service clamps, confirm whether the connection is for 2 core or 4 core service cables.

7
Step 7

Distribution box type

Select PC, SMC, or Deep Drawn based on enclosure and project requirement.

Learn From Our Engineers

Technical Guides and Resources

video

How to install Insulation Piercing Connectors (IPC) for AB Cables

How to install Insulation Piercing Connectors (IPC) for AB Cables
video

How to install Service Clamps for AB Cables

How to install Service Clamps for AB Cables
video

How to Install DB Box

How to Install DB Box
video

How to install Mid Span Joint?

How to install Mid Span Joint?
video

How to Install Anchoring Clamps

How to Install Anchoring Clamps

FAQS

Frequently Asked Questions

Find quick answers to common questions about our programs, admissions, eligibility, and application process to help you move forward with confidence.

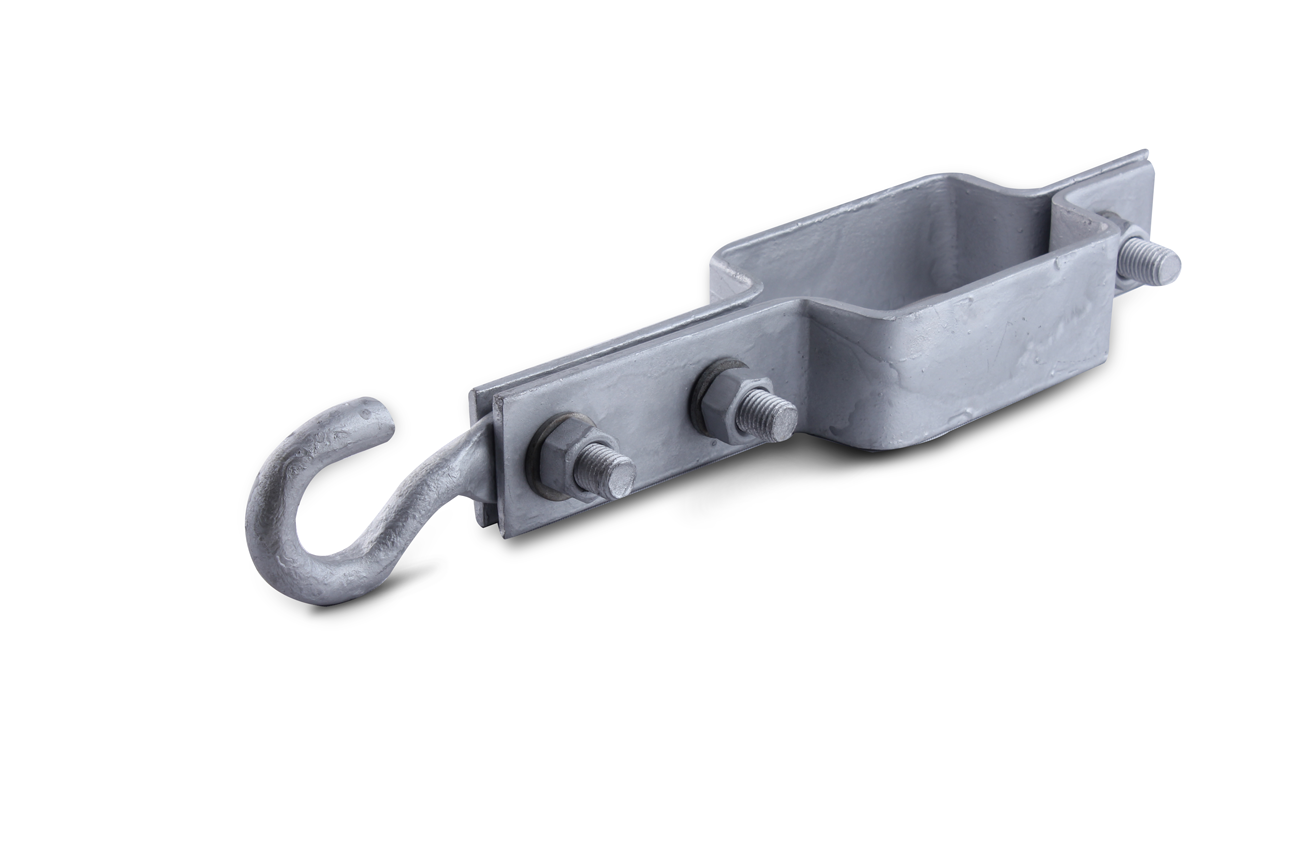

The range includes anchoring clamps, suspension clamps, service clamps, distribution boxes in PC, SMC, and Deep Drawn options, and supporting hardware.
Axis anchoring clamps cover 25-50 mm², 50-95 mm², and 95-120 mm² depending on the product code.

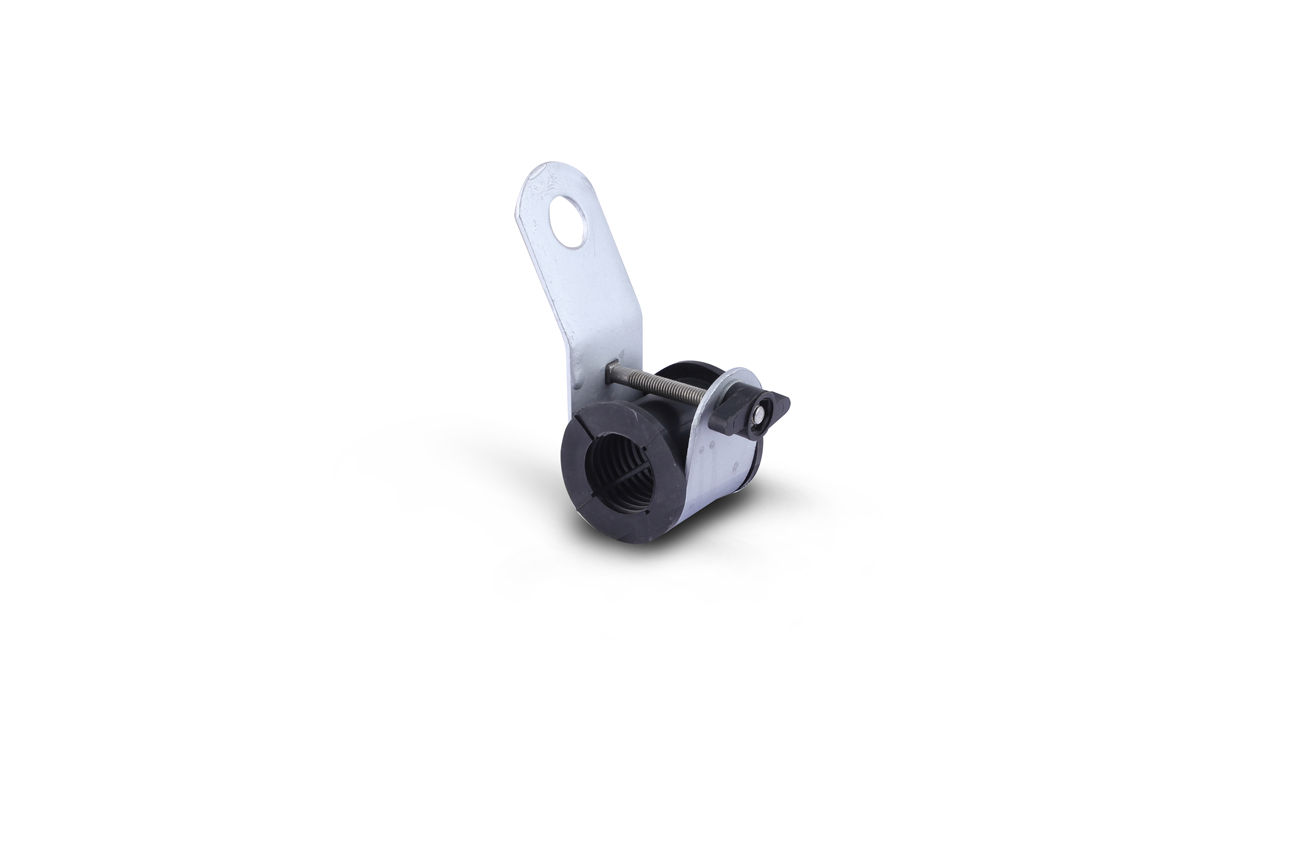

Axis suspension clamps cover 25-50 mm², 70-95 mm², 95-120 mm², and 2/4C x 25-120 mm² depending on the product code.

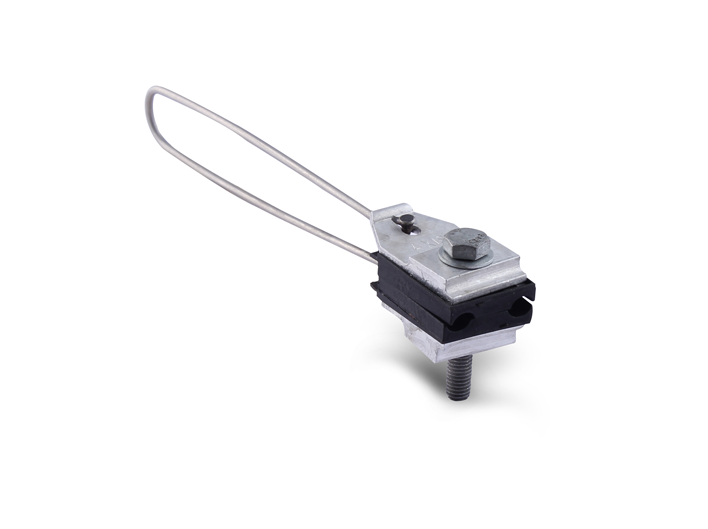

Axis service clamps cover 2C x 16-25 mm² and 4C x 16-25 mm² service cable options.
The catalogue references BS EN 50483 for self-supporting anchoring, suspension, and service clamp performance.

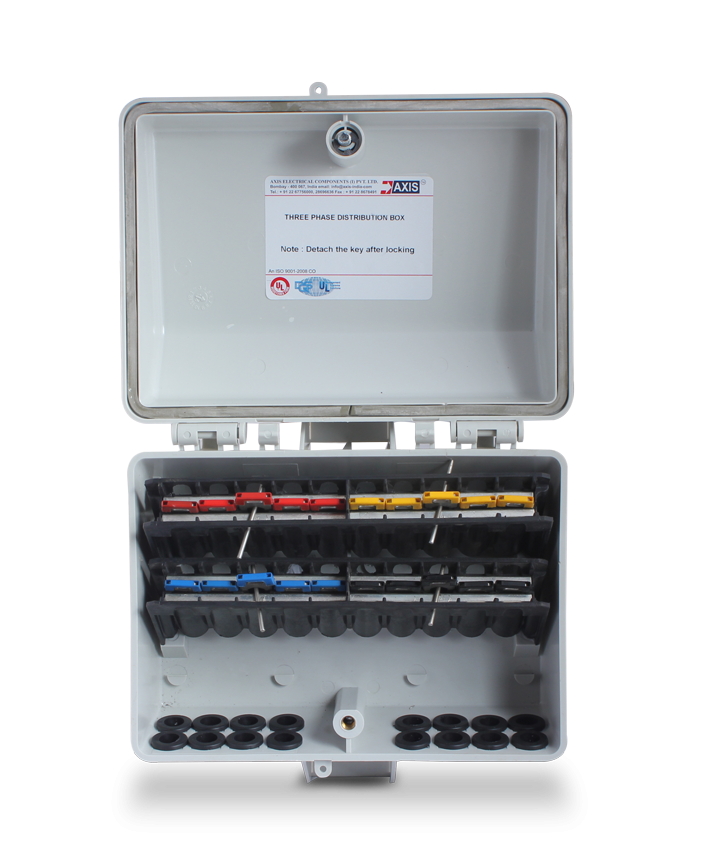

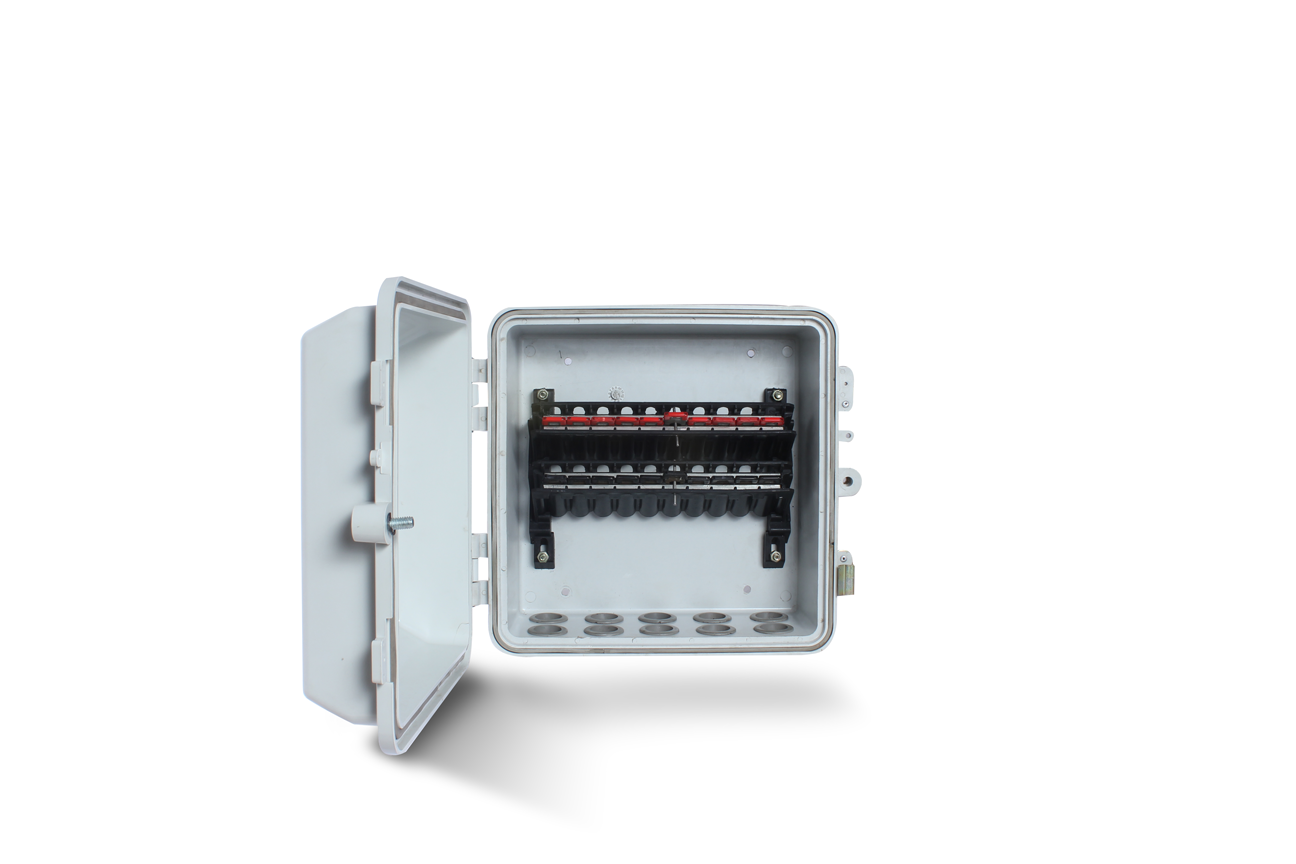

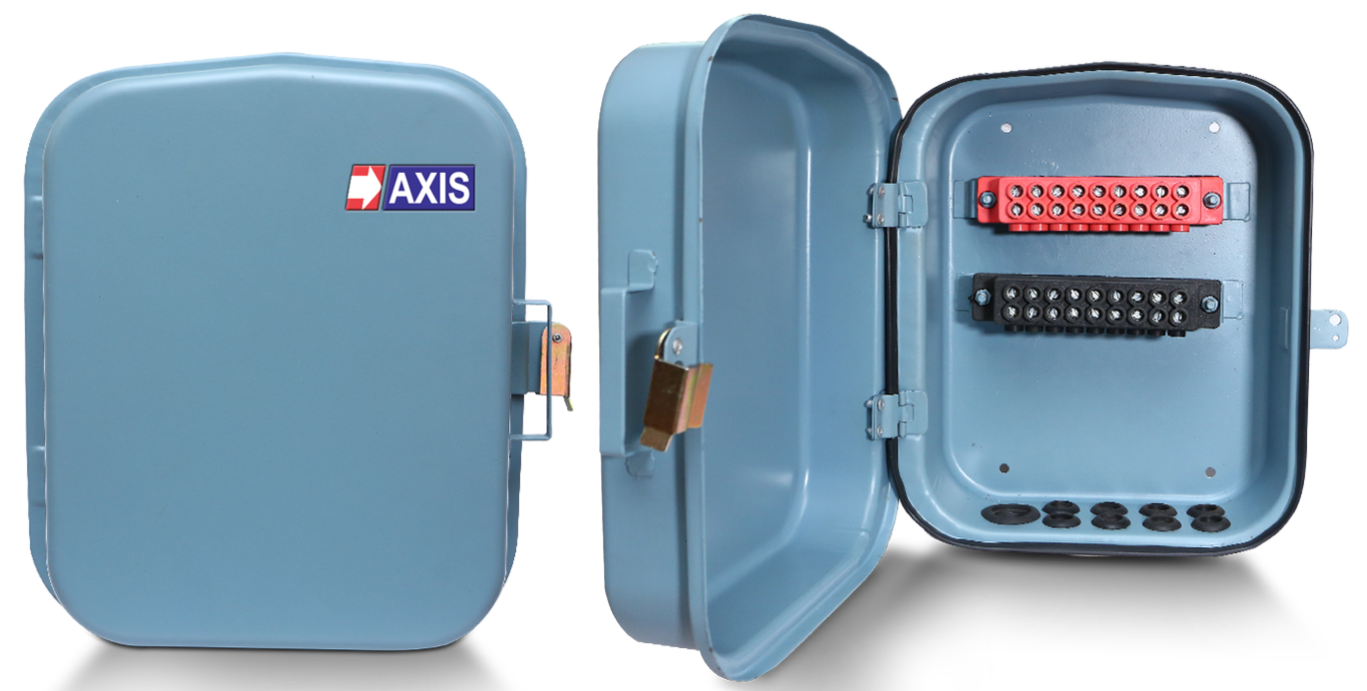

Axis offers PC, SMC, and Deep Drawn distribution boxes for low-voltage distribution applications.
The catalogue mentions IP55 rating for PC, SMC, and Deep Drawn distribution boxes.
